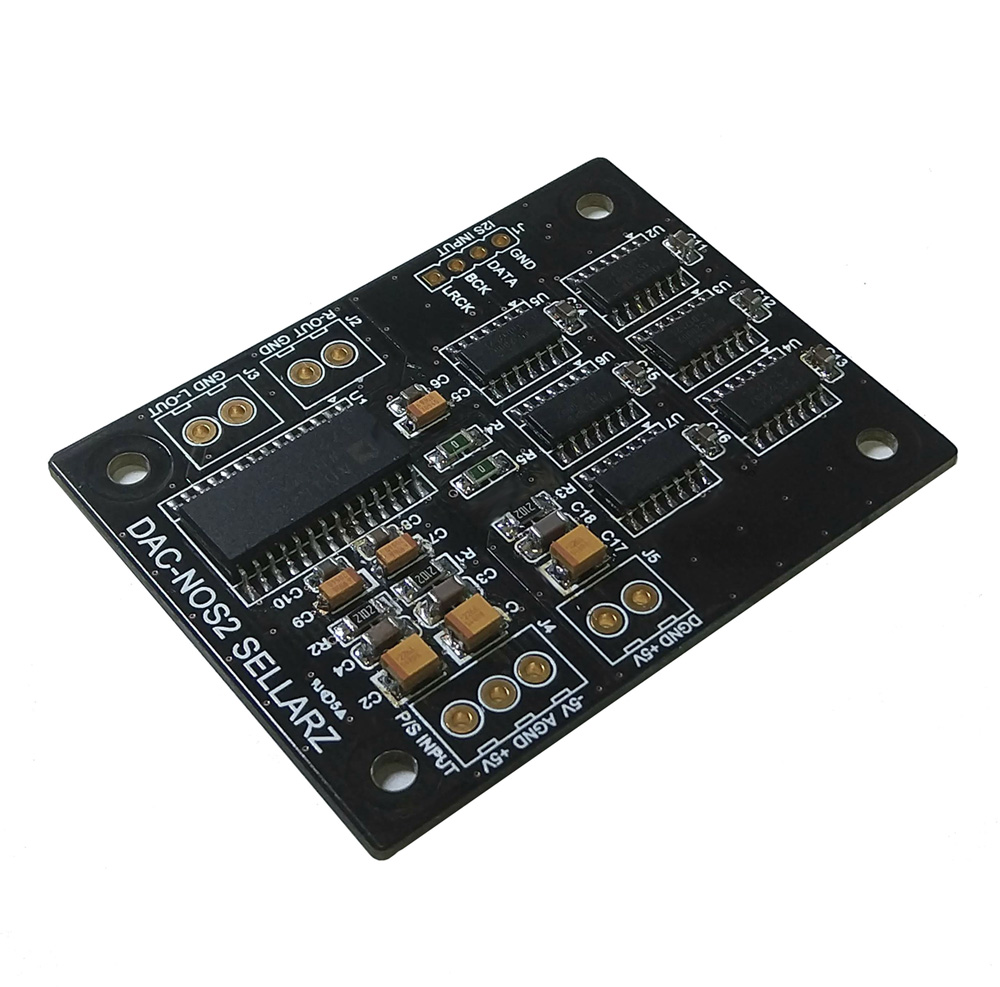

DAC-NOS2 : AD1865 Non Over-Sampling DAC
AD1865 Non-Oversampling DAC
Á¦ Á¶ »ç : SELLARZ
ÆǸŰ¡°Ý : 165,000 ¿ø
¼ö  ·® :
°¡  °Ý :
165,000
 ¿ø
Total :
 ¿ø

¹Ù·Î±¸¸Å Àå¹Ù±¸´Ï ´ã±â WishList ÃßõÇϱâ
»óÇ° »ó¼¼Á¤º¸

Natural and Clear Sound



DAC-NOS2 Àü¿ë Àü¿øºÎÀÔ´Ï´Ù : https://www.sellarz.com/goods/view?no=91



1. General Properties

- AD1865R-J

- 0.1% Low Noise Thin Film Resistors

- High Quality C0G Capacitors

- Low ESR Conductive Polymer and Tantalum Capacitors

- Gold Plated PCB

- Size: 60 x 46(W x D:mm)



2. Specifications

. I2S Input(DATA, LRCK, BCK, GND)

. Output Voltages : +/- 3.0V

. Output Impedance : 0.1W

. THD + NOISE : 0.003% @0dB, 990.5Hz

. Resolution/Frequency : Up to 16bit, 24bit, 32bit/384KHz

. Power Supply :

1. Analog(+Vs, -Vs) : +5V/26mA, -5V/-26mA(Regulated)

2. Digital(+VL)  : +5V/< 1mA(Regulated)
