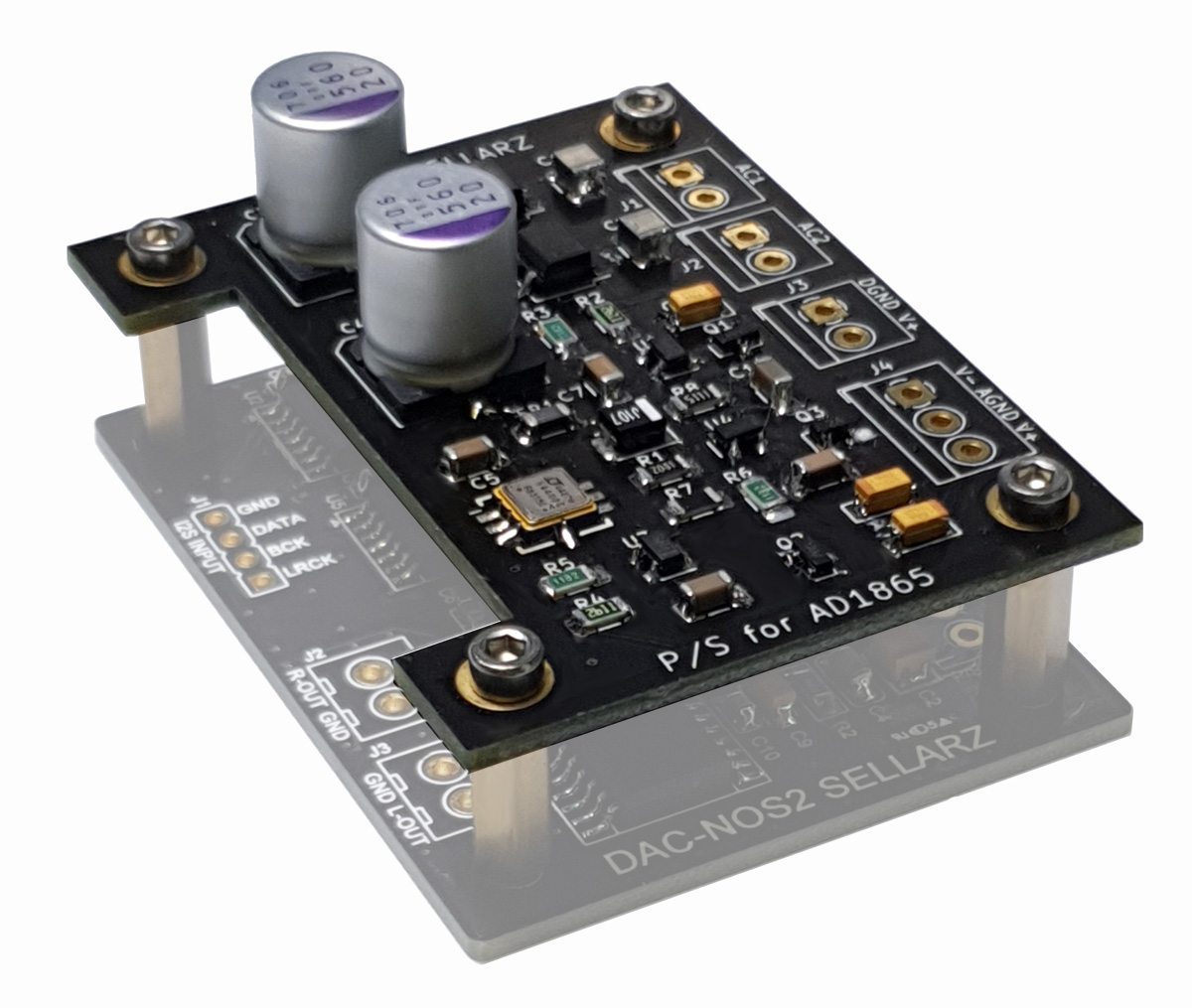

DAC-NOS2(AD1865 DAC) 전용 전원부입니다.

- DAC-NOS2 : https://www.sellarz.com/goods/view?no=64

1. Long life, Low Impedance Smoothing Capacitor

2. Thin Film  0.1%/10PPM Low Noise Resistor

3. Low ESR SMD Polymer Capacitor

4. High Precision, Low Drift Reference : +/-0.05%, 15PPM Long Term Drift

5. Lowest Noise, ZERO Drift Error Amp

6. Gold Plated PCB

7. Size : 60 x 46 x 14(D x W x H :mm)

1. Voltage Noise : 17nVRMS( f = 0.1 Hz to 10 Hz)

2. PSRR(Power Supply Ripple Rejection) : 166dB(Vs=10V)

3. Voltage Temperature Coefficient : 0.02ppm(MAX)

4. Required Input AC Voltage(Transformer's Secondary Voltage) : AC(6V~12V) x 2

5. Fixed DC Output Voltage : +/-5V for Analog, 5V for Digital
