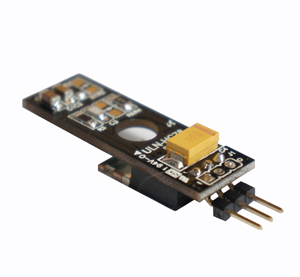

ULN-HC78A:Ultra Low Noise Regulator
Ultra Low Noise, High PSRR Positive Regulator 2.5V~30V Output High Current Type
Á¦ Á¶ »ç : SELLARZ
ÆǸŰ¡°Ý : 65,000 ¿ø
Àü¾Ð ¼±Åà Çʼö :
¼ö  ·® :
°¡  °Ý :
65,000
 ¿ø
Total :
 ¿ø

¹Ù·Î±¸¸Å Àå¹Ù±¸´Ï ´ã±â WishList ÃßõÇϱâ
»óÇ° »ó¼¼Á¤º¸

»ó¼¼¾È³»¼­´Â ÀÚ·á½Ç¿¡ µî·ÏµÇ¾î ÀÖ½À´Ï´Ù.
----------------------------------------------------------------------------------------------------------------

Ultra Low Noise Positive Regulator for High Current



ULN-HC78A : Voltage  Noise  42nVrms @0.1Hz ~ 10Hz /PSRR 140dB(Vs=7.2V~30V)

ULN-HC78A is direct replaceable for 78XX of TO-220 package.



<General Properties>
1. Trimmed to High Accuracy Reference
2. Ultra Low Noise and High PSRR Error Amp
3. Thin Film  0.1%/10PPM Low Noise Resistors
4  Low ESR SMD Tantal Capacitor
5. Pin Compatible with 78xx Regulator



<Specifications>
1. Voltage Noise : 42nV @ 0.1Hz ~ 10Hz
2. PSRR(Power Supply Ripple Rejection) : 140dB(Vs=7.2V to 30V)
3. Voltage Reference
- 5V ~ 30V : LT1236ACS8-5(2ppm/¡ÆC, 0.05% Accuracy)
- 2.5V ~ 3.3V : MAX6225(1ppm/¡ÆC, 0.02% Accuracy)
4. Input Voltage : 7.2V~ 30V
5. Output Voltage : 2.5V, 2.6V, 3.3V, 5.0V, 8.0V, 10V, 12V, 15V, 18V, 20V, 25V, 28V
6. Max. Current : 4.0A
7. Power Rating : 40W(Junction to Case @85¡ÆC)/1W(Junction to Ambient @85¡ÆC)
8. Gold Plated PCB : Size 12.5 x 37(W x H :mm)

----------------------------------------------------------------------------------------------------------------------
1. À§ ¿É¼Ç¿¡¼­ Çʼö·Î Àü¾ÐÀ» ¼±ÅÃÇÏ¿©¾ß ÇÕ´Ï´Ù.
2. Àý¿¬½ÃÆ®/Àý¿¬¿ë ºÎ½Ì/º¼Æ®/³ÊÆ® Æ÷ÇÔ
